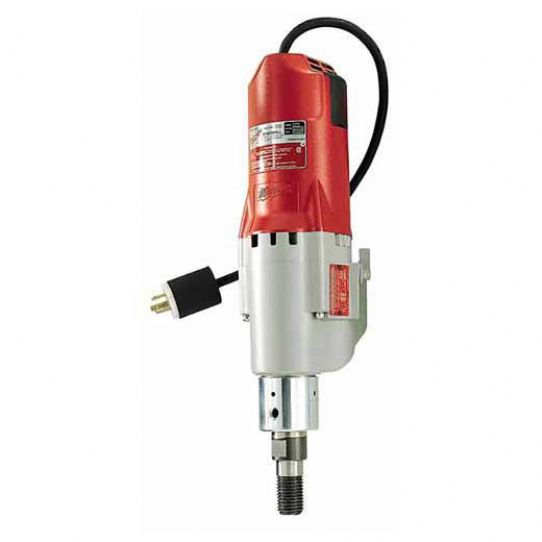

Drill, Coring, Diamond, Dymodrill
Diamond coring motors are used with Vac-U-Rig® and Dymorig diamond core rigs to drill holes into reinforced concrete. This 20 amp model features 4.8 peak horsepower with a 450 rpm or 900 rpm operating speed. The 4096 has a clutch to protect gears and motor against overload. This unit will handle core bits from 2 in. to 10 in. in diameter.
Features:
- Two speeds: 450 and 900 rpm
- 20 amp motor
- Clutch protection protects gears and motor
- Built-in water swivel
Specifications:
- Weight 24.0 lbs
- Voltage 120V
- Tool Warranty 5 Years
- No Load RPM 450-900
- Amps 20
- Spindle 1-1/4"-7
- Max HP 4.8
- Motor Protection Clutch
- Plug Type L5-20P
- Suggested Dia in Med Aggregate 6"-10" / 2"-6"
