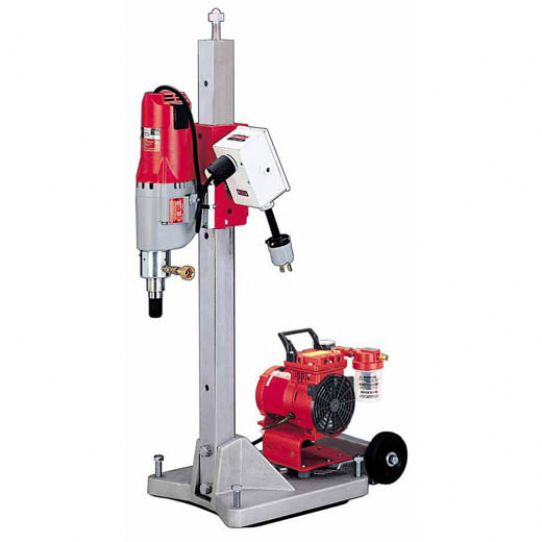

Drill, Coring, Diamond, Dymodrill, Vacuum Base & Attachments

This contractor series large base stand features a cast aluminum base with 4 leveling screws for fast accurate leveling adjustment. The durable precision-ground 2-1/2 in. steel column is 43-1/2 in. high and has a universal motor adapter plate. The reversible feed handle helps the operator use the unit from either side. Model 4120-22 comes with model 4096 coring motor, Vac-U-Rig® kit as well as a meter box. The Vac-U-Rig® assembly uses a vacuum pump to apply suction to a large pad mounted on the bottom of the rig. This aids in stability when coring holes.


  • Comes with 4096 Diamond Coring Motor
  • Cast aluminum base with four leveling screws for fast accurate leveling adjustment
  • Durable precision-ground 2-1/2 in. steel column, 43-1/2 in. high.
  • Rear mounted rack and pinion feed.


  • Weight 115.3 lbs
  • Tool Warranty 5 Years
  • Amps 20
  • Spindle 1-1/4"-7
  • Max HP 4.8
  • Motor Protection Clutch
  • Plug Type L5-20P
  • Suggested Dia in Med Aggregate 6"-10" / 2"-6"
  • Angle Drilling No
  • Meter Box Yes
  • Vac Base and Pump Yes
  • Wheels Yes
  • Height 43-1/2"
Use your toolbox to add equipment to a handy list you can then use to request rates or for your own reference

Images are representative of product. Product may not be exactly as shown.
